Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug

Product Categories
Shenzhen Bede Mold Co., Ltd
Contact Now

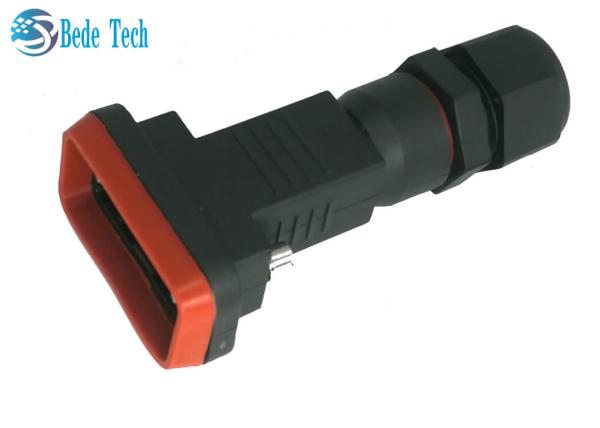

Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug

  • 1
  • 2
  • 3

Brand Name : BEDE

Model Number : BEDE-AISG-DB15

Certification : UL CE ROHS

Place of Origin : China

MOQ : 100

Price : $0.99

Payment Terms : Western Union , T/T ,Papay

Supply Ability : 50000/week

Delivery Time : 2 days for retail, 20 days for wholesale

Packaging Details : 1000 pcs in a carton, size 480*410*410mm, G.W. 25KG.

Type : Plastic connector

Protection Level : IP 67/68

Function : waterproof

Material : PA66 UL94V-0

colour : black

Size : 41mm*22mm*79mm

Operating temperature : -55℃～125℃

Contact Now

RRU To RRU RET Control Cable AISG Connector DB 15PIN 3G 4G Communication Cabinet Plug

Description

1, name: DB 15Pin plug
2, material: PA66 UL 94V0
3, Protection Level: IP 67/68
4, Withstand voltage: 1000VAC, 60s, 1mA
5, Rated voltage: 300V
6,Rated current: 5A

Click To Download DB-TDS.pdf

Waterproof AISG Connector RET AISG Cable Pulg D-USB 15 PIN 3G 4G Communication Cabinet Plug

Model specification

Name Factory Model Standards
DB15 Connector BEDE BEDE-AISG-DB15 RoHS

Parameter

Name Material Plating
Plastic connector PA66 UL94V-0 /
Size 41mm*22mm*25mm /
Pinhole brass 1.27um Ni bottom, gold plated contact 0.02-0.03um, fogging in the tail area Tin 2.5um
　
installation Screw
Size 30.8(A)*25(B)*12.5(C)*2.29(D)
Pins No. 15 PIN
Button /
Operating temperature 　-55℃～125℃
Rated voltage 300V
Rated current 　5A
Withstand voltage 　1000VAC,60s,1mA
Insulation resistance ≥5000MΩ
Contact resistance ≤30mΩ
Contact form 　welding
Lifetime 500 cycles
Storage conditions Normal temperature and humidity, no corrosive gas environment
Storage time 5 years
Application
This waterproof plug can be used in a variety of electrical appliances and cabinets. It is a good choice for outdoor waterproofing.
